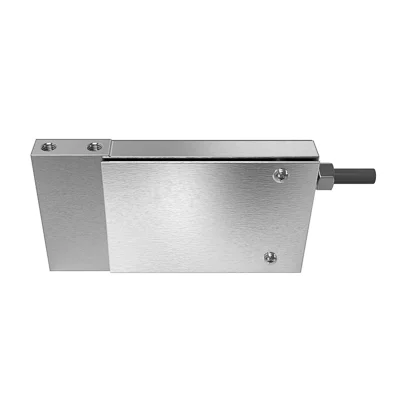

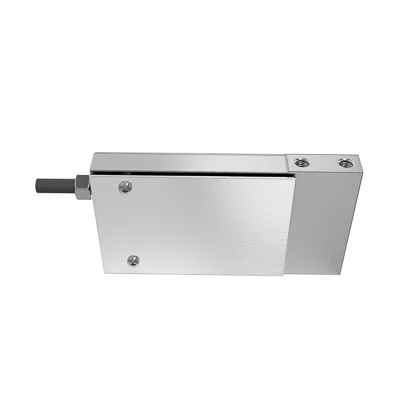

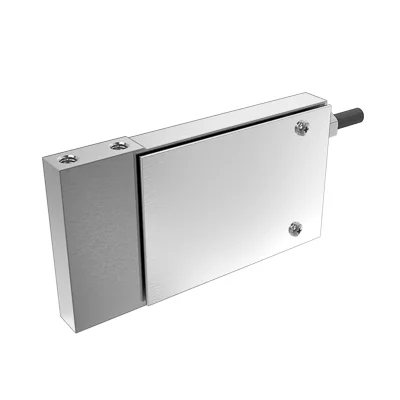

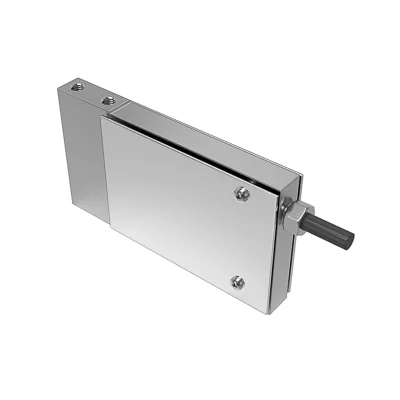

60051 Single Point Load Cell

Price range: $113.00 through $250.00 Inc Shipping

Model 60051 is a low-profile high-precision, stainless‑steel, single point platform load cell.

Rated capacities of 10 to 200 pounds
Stainless steel construction
Moment-compensated design for minimal sensitivity to moments induced by off-center loading

Download Data Sheet- FS_DS_2684-EN_60051–

Cable Length

Approval & Safety Code

Capacity

Environmental Code

Load Cell Types

Loading Thread

Mounting

Material

Output

Quantity	Price	Discount
1-4	$113.00	$0.00
5+	$101.70	10%

Add to wishlist

Guaranteed Safe Checkout

SKU: SKU 60051-025L-NC-00X Category: Single Point

SKU	Capacity	Status	Price	Qty	Add
SKU 60051-025L-NC-00X	3-2-m, not-atex-fm-approved, 25-lb, ip67-ip69k, single-point, un, un, , 2-0-mv-v	In Stock	Original price was: $114.00.Current price is: $113.00. Inc Shipping		Add
SKU 60051-025L-NC-00X	3-2-m, not-atex-fm-approved, 200-lb, ip67-ip69k, single-point, un, un, stainless-steel, 2-0-mv-v	In Stock	Original price was: $256.00.Current price is: $250.00. Inc Shipping		Add

List of variants

Parameter	Value	Unit
Rated capacity (lbs)	10, 15, 25, 50, 100, 200	lbs
NTEP/oiml accuracy class	Standard
Max. no. of intervals (n)	—
Rated output R.O	2	mV/V
Rated output tolerance	+0.25...–10	±%mV/V
Zero balance	1	±%FSO
Non-repeatability	0.01	±%FSO
Creep error	0.03	±%FSO
Ultimate over load	300	% of R.C
Excitation voltage	10	VDC or VAC RMS
Max. excitation voltage	15	VDC or VAC RMS
Input resistance	380–450	Ω
Output resistance	349–355	Ω
Insulation resistance	>1000	MΩ
Environmental protection	IP67

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Applications

Single-point platform scales
Bench, counting and deli scales
Checkweighing scales
Hopper scales and netweighing

Description

Model 60051 is a low-profile high-precision, stainless steel, single point platform load cell.

The product’s low profile makes it ideal for many low to mid-range capacity-weighing applications where space is at a premium. This load cell is most commonly used in platform scales, but can be adapted for use in many process-weighing applications.

The stainless-steel construction and IP67 rating make this load cell ideal for any environmental installation. This load cell is specifically designed for use in corrosive and wet environments that are not appropriate for common aluminum load cells.

This product is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially-explosive environments.

Features

Rated capacities of 10 to 200 pounds
Stainless steel construction
Moment-compensated design for minimal sensitivity to moments induced by off-center loading
Sensorgage™ sealed to IP67 standards
Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G.
Non-incendive ratings (without barriers)

Certifications

Cable Length	3.2 m
Approval & Safety Code	Not ATEX/FM approved No certification for ATEX or FM; cannot be used in regulated hazardous zones.
Capacity This load may also be available in other capacities. If your required quantity isn’t listed, please request a custom quote	200 lb , 25 lb
Environmental Code	IP67 / IP69K Protected against temporary immersion (IP67) and also high-pressure, high-temperature water jets (IP69K). Ideal for food, pharma, and hygienic industries.
Load Cell Types	Single Point
Loading Thread	UN United Nations – sometimes used for global trade conformity / generic standard reference.
Mounting	UN Unified National Thread (UNC/UNF) – U.S. inch-based threading system.
Material	Stainless Steel
Output	2.0 mV/V
