CSP Compression Load Cell – Capacities: 10–100 t

Price range: $2,191.00 through $8,139.00 Inc Shipping

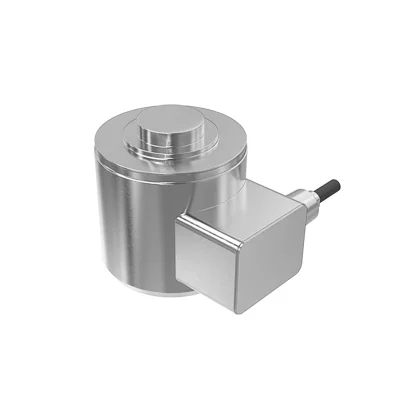

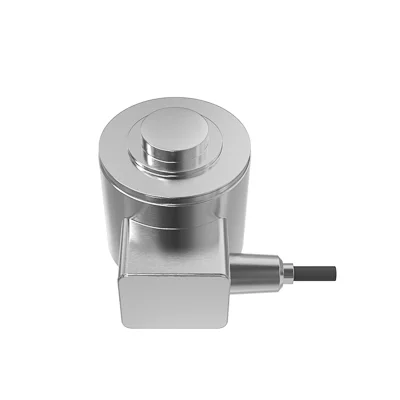

Model CSP is a multi-column, low profile, stainless-steel compression load cell. The unique four-column design offers excellent insensitivity to eccentric loads while maintaining accuracy.

Capacities: 10–100 t
Low profile, multi-column stainless-steel construction
Hermetically sealed, IP66, IP68, and IP69K

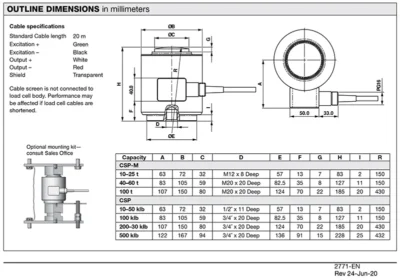

Download Data Sheet – CSP Compression Load Cell

Capacity

Accuracy / Class Code

Approval & Safety Code

Cable Length

Environmental Code

Load Cell Types

Material

Mounting

Output

Quantity	Price	Discount
1-4	$2,191.00	$0.00
5+	$1,971.90	10%

Add to wishlist

Guaranteed Safe Checkout

SKU: 00CSP-200E-A1-03X Category: Compression

SKU	Capacity	Status	Price	Add
SKU 00CSP-200E-A1-03X	200-klb, ntep-iiil-10000-single, not-atex-fm-approved, , ip69k, compression, stainless-steel, na, standard-product	Out of Stock	$8,139.00 Inc Shipping	Add
SKU 00CSP-300E-3S-02X	300-klb, ntep-3000-single-class-iii, not-atex-fm-approved, 20-m, ip69k, compression, stainless-steel, na, 2-mv-v-if-different-to-standard	Out of Stock	$3,290.00 Inc Shipping	Add
SKU 00CSP-060T-4C-01X	60-t, oiml-4000-d, not-atex-fm-approved, 20-m, ip69k, compression, stainless-steel, na, 2-mv-v-if-different-to-standard	Out of Stock	$2,191.00 Inc Shipping	Add
00CSP-200E-A1-03X	200-klb, ntep-iiil-10000-single, not-atex-fm-approved, 4-5-m, ip69k, compression, stainless-steel, na, standard-product	Out of Stock	$8,139.00 Inc Shipping	Add

Description

Model CSP is a multi-column, low profile, stainless-steel compression load cell. The unique four-column design offers excellent insensitivity to eccentric loads while maintaining accuracy.

The product is suitable for use in road and rail weighbridges and process-weighing applications.

The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in demanding environments.

The product meets the stringent Weights and Measures requirements throughout Europe.

Features

Capacities: 10–100 t
Low profile, multi-column stainless-steel construction
Hermetically sealed, IP66, IP68, and IP69K
Certified to OIML R-60, 4000d and NTEP class IIIL 10000 divisions
- Model CSP offers klb capacity, imperial thread and NTEP approval
- Model CSP-M offers metric capacity, thread and OIML approval
Built-in surge protection tubes (GDTs)
Current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells

Options

ATEX and FM certified versions are available for use in potentially explosive atmospheres
Multi-interval and multiple range versions available
Imperial capacities (25k, 50k, 100k, 200k lbs) not OIML approved

Certifications

Parameter	Value				Unit
Rated capacity (kg)	10000, 25000, 40000, 60000, 100000				kg
Rated capacity (lbs)	10, 25, 40, 50, 60, 75, 100, 150, 200, 300, 500				lbs
NTEP/oiml accuracy class	NTEP IIIL	NTEP IIIL	C3	C4
Max. no. of intervals (n)	10000	3000	3000	4000
Rated output R.O	2				mV/V
Rated output tolerance	0.02				±%mV/V
Zero balance	1				±%FSO
Non-repeatability	0.01	0.01	0.01	0.009	±%FSO
Creep error	0.05	0.035	0.0245	0.0184	±%FSO
Ultimate over load	400				% of R.C
Excitation voltage	5 to 20				VDC or VAC RMS
Max. excitation voltage	10				VDC or VAC RMS
Input resistance	450 ±4.5				Ω
Output resistance	480 ±4.8				Ω
Insulation resistance	>5000				MΩ
Environmental protection	IP66 and IP68

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Applications

Truck and rail weighbridges
Silo and hopper weighing
Process weighing

Capacity This load may also be available in other capacities. If your required quantity isn’t listed, please request a custom quote	200 klb , 300 klb , 60 t
Accuracy / Class Code	NTEP 3000 Single Class III NTEP certified; 3000 divisions, single range, Class III (typical trade scales). , NTEP IIIL/10000 Single NTEP certified; 10000 divisions, single range, Class IIIL. , OIML 4000 d
Approval & Safety Code	Not ATEX/FM approved No certification for ATEX or FM; cannot be used in regulated hazardous zones.
Cable Length	20 m , 4.5 m
Environmental Code	IP69K Highest rating: Dust-tight and protected against close-range high-pressure, high-temperature washdowns. Common in food processing and medical equipment.
Load Cell Types	Compression
Material	Stainless Steel
Mounting	NA Not Applicable – no threading specification required. , NT Often used as No Thread (alternate abbreviation).
Output	2 mV/V (if different to standard) , Standard Product
