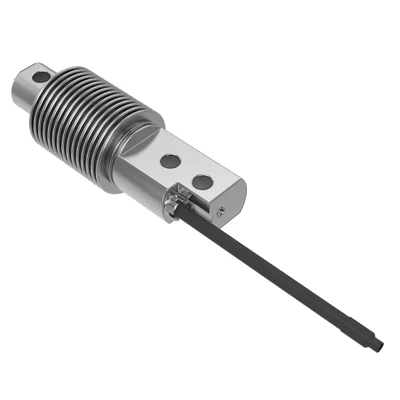

Model- 355 Welded, Hermetically Sealed Load Cell - Image 1

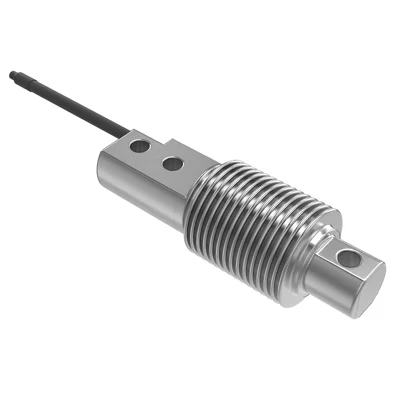

Model- 355 Welded, Hermetically Sealed Load Cell - Image 2

Click to enlarge

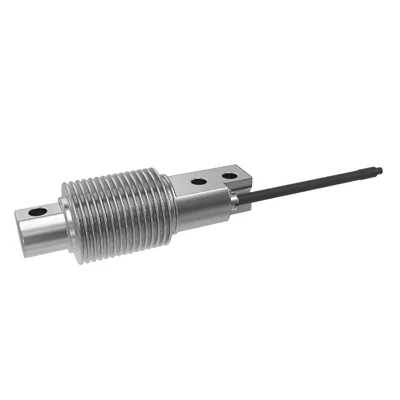

Model- 355 Welded, Hermetically Sealed Load Cell

$331.88 Inc Shipping

Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.

Capacities: 5–500 kg
Stainless steel construction
OIML R60 and NTEP approved

Download Data Sheet –Model- 355 Welded, Hermetically Sealed Load Cell

Accuracy / Class Code

Approval & Safety Code

Cable Length

Capacity

Environmental Code

Load Cell Types

Material

Mounting

Output

Quantity	Price	Discount
1-4	$331.88	$0.00
5+	$298.69	10%

Add to wishlist

Guaranteed Safe Checkout

SKU: N/A Category: Single-Ended

SKU	Capacity	Status	Price	Add
00355-050K-C3-00X	oiml-3000-d, not-atex-fm-approved, 3-m, 50-kg, ip68, single-ended-shear-beam, stainless-steel, th, 2-0-mv-v	In Stock	$331.88 Inc Shipping	Add
00355-100K-C3-06X	oiml-3000-d, not-atex-fm-approved, 3-m, 100-kg, ip68, single-ended-shear-beam, stainless-steel, th, standard-product	In Stock	$331.88 Inc Shipping	Add
00355-200K-C3-01X	oiml-3000-d, not-atex-fm-approved, 3-m, 250-kg, ip68, single-ended-shear-beam, stainless-steel, th, standard-product	In Stock	$331.88 Inc Shipping	Add
00355-500K-C3-04X	oiml-3000-d, not-atex-fm-approved, 3-m, 500-kg, ip68, single-ended-shear-beam, stainless-steel, th, standard-product	In Stock	$331.88 Inc Shipping	Add

Description

Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.

With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with EEx ia IIC T6 level of approval as an option.

Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Features

Capacities: 5–500 kg
Stainless steel construction
OIML R60 and NTEP approved
IP68 protection

Options

EEx ia IIC T6 hazardous area approval
FM and IECEx approvals available

Certifications

Parameter	Value				Unit
Rated capacity (kg)	5, 10, 20, 30, 50, 100, 200, 250, 500				kg
NTEP/oiml accuracy class	NTEP	Non-Approved	C3	C4
Max. no. of intervals (n)	4000 single	1000	3000	4000
Rated output R.O	2.00 (UR matched = 2.02)				mV/V
Rated output tolerance	0.002				±%mV/V
Zero balance	0.04				±%FSO
Ultimate over load	300				% of R.C
Excitation voltage	10				VDC or VAC RMS
Max. excitation voltage	15				VDC or VAC RMS
Input resistance	380±10				Ω
Output resistance	355±5				Ω
Insulation resistance	>2000				MΩ
Environmental protection	IP68

FSO - Full Scale Output
All specifications subjects to change whithout notice.

applications

Low-profile platforms
Loss-in-weight feeders
Marine and hybrid scales
Belt weighers
Demanding food industry environments

Accuracy / Class Code	Not OIML Approved 3000d Not OIML approved; 3000 divisions. , OIML 3000 d OIML certified; 3000 divisions.
Approval & Safety Code	Not ATEX/FM approved No certification for ATEX or FM; cannot be used in regulated hazardous zones.
Cable Length	3 m , 3.1 m
Capacity This load may also be available in other capacities. If your required quantity isn’t listed, please request a custom quote	100 kg , 250 kg , 50 kg , 500 kg
Environmental Code	IP68 Dust-tight and protected against continuous immersion in water under conditions specified by the manufacturer.
Load Cell Types	Single-Ended Shear Beam
Material	Stainless Steel
Mounting	TH Threaded Hole – generic threaded design (could be metric or unified). , Thru Through Hole – hole goes all the way through, usually unthreaded.
Output	2.0 mV/V , Standard Product
