Model – 65023- Shear Beam Load Cell

$259.28 Inc Shipping

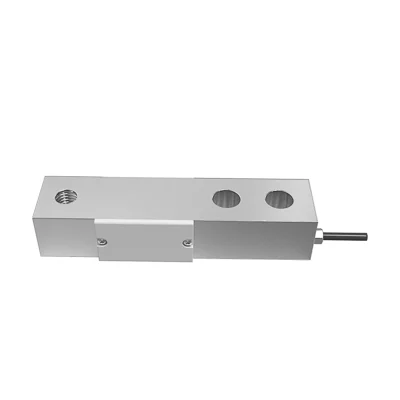

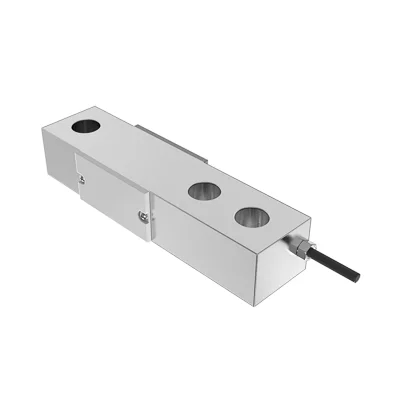

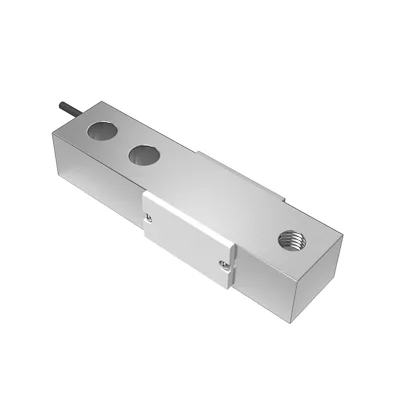

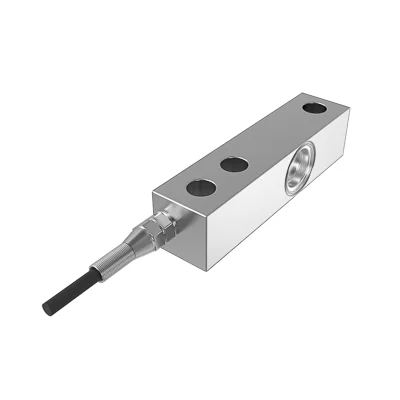

Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-weighing applications.

Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
“Thru” or “threaded” load hole configurations
Low sensitivity to axial loads

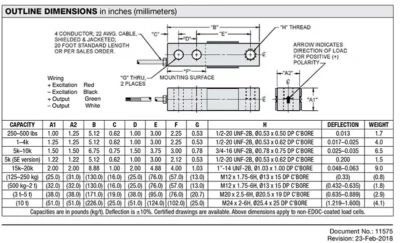

Download data sheet- 65023 Shear Beam Load Cell

Capacity

Accuracy / Class Code

Approval & Safety Code

Cable Length

Environmental Code

Load Cell Types

Material

Mounting

Quantity	Price	Discount
1-4	$259.28	$0.00
5+	$233.35	10%

Add to wishlist

Guaranteed Safe Checkout

SKU: N/A Category: Single-Ended

Description

Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.

It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.

Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.

Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.

Features

Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
“Thru” or “threaded” load hole configurations
Low sensitivity to axial loads
Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
Sensorgage™ sealed to IP67 standards
Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
Non- incendive ratings (without barriers)
Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available

Options

Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval

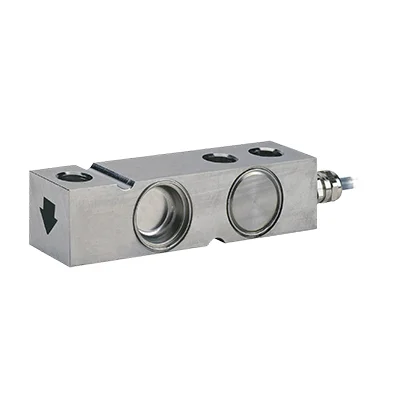

Stainless-steel versions available
65059 TWA companion weighing assemblies available
EDOC product appearance will differ from the photograph due to coating

Certifications

Parameter	Value				Unit
Rated capacity (kg)	125, 250, 500, 750, 1000, 2000, 5000, 10000				kg
Rated capacity (lbs)	250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k				lbs
NTEP/oiml accuracy class	NTEP III	NTEP IIIL	Standard	OIML R60
Max. no. of intervals (n)	3000 single	10000 multiple	—	3000
Rated output R.O	3				mV/V
Rated output tolerance	0.25				±%mV/V
Zero balance	1				±%FSO
Non-repeatability	0.01				±%FSO
Creep error	0.025	0.03	0.03	0.017	±%FSO
Ultimate over load	300				% of R.C
Excitation voltage	10				VDC or VAC RMS
Max. excitation voltage	15				VDC or VAC RMS
Input resistance	343–357				Ω
Output resistance	349–355				Ω
Insulation resistance	>1000				MΩ
Environmental protection	IP67

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Applications

Floor scales
Tank weighing
Bin and hopper weighing

Capacity This load may also be available in other capacities. If your required quantity isn’t listed, please request a custom quote	1000 kg , 2000 kg , 250 kg , 500 kg
Accuracy / Class Code	No Classification No defined classification or approval for accuracy standards. , Not OIML Approved 200d Not OIML approved; 200 divisions. , NTEP 10000 Multiple Class IIIL NTEP certified; 10000 divisions, multiple range, Class IIIL (large capacity). , NTEP 3000 Single Class III NTEP certified; 3000 divisions, single range, Class III (typical trade scales). , NTEP 5000 Multiple NTEP certified; 5000 divisions, multiple range. , OIML 3000 d OIML certified; 3000 divisions.
Approval & Safety Code	FM Certified by Factory Mutual (FM Global, USA) for safe use in hazardous or explosive environments. , Not ATEX/FM approved No certification for ATEX or FM; cannot be used in regulated hazardous zones.
Cable Length	0.76 m , 3.2 m , 4.75 m , 6 m , 6.25 m
Environmental Code	IP67 Dust-tight and protected against temporary immersion in water (up to 1 meter depth, 30 minutes).
Load Cell Types	Single-Ended Shear Beam
Material	Alloy Steel , Stainless Steel
Mounting	TH Threaded Hole – generic threaded design (could be metric or unified). , Thru Through Hole – hole goes all the way through, usually unthreaded.
