Model- 9363- S Type Universal Load Cell
Price range: $363.00 through $388.93 Inc Shipping

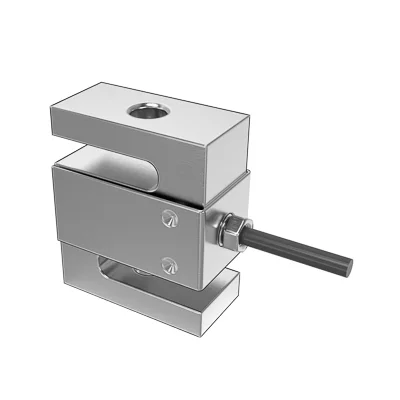

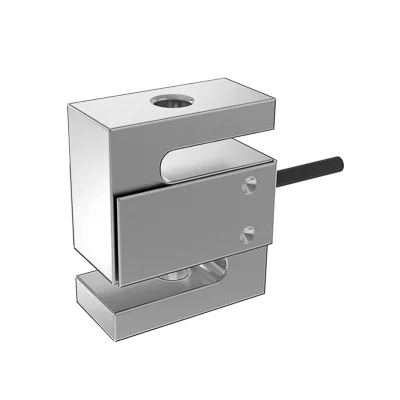

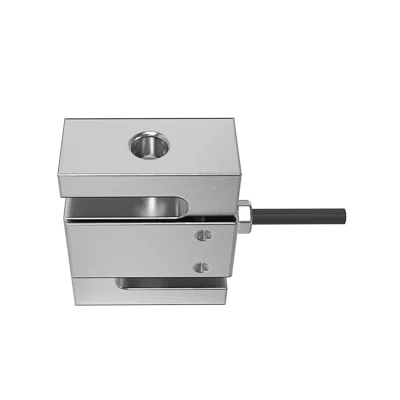

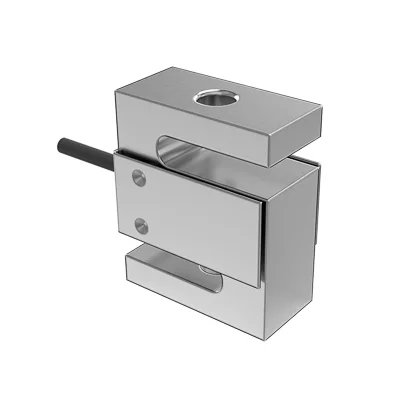

Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
- Capacities: 50 to 10,000 kg (50 to 20,000 lbs)
- Stainless-steel construction
- Suitable for compression and tension applications
Download Date Sheet – Model- 9363- S Type Universal Load Cell
| Quantity | Price | Discount |
|---|---|---|
| 1-4 | $363.00 | $0.00 |
| 5+ | $326.70 | 10% |
Guaranteed Safe Checkout
Description
Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
Features
- Capacities: 50 to 10,000 kg (50 to 20,000 lbs)
- Stainless-steel construction
- Suitable for compression and tension applications
- Trimmed output versions standard
- Sealing: IP67
- Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions
Options
- FM approved for use in potentially explosive atmospheres
Certifications
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 | kg | ||
| Rated capacity (lbs) | 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k | lbs | ||
| NTEP/oiml accuracy class | NTEP IIIL | Non-Approved | OIML C3 | |
| Max. no. of intervals (n) | 10000 | D3 | 3000 | |
| Rated output R.O | 3 | mV/V | ||
| Rated output tolerance | 0.0075 | ±%mV/V | ||
| Zero balance | 1 | ±%FSO | ||
| Non-repeatability | 0.0100 | 0.0100 | 0.0100 | ±%FSO |
| Creep error | — | ±%FSO | ||
| Ultimate over load | 250 | % of R.C | ||
| Excitation voltage | 5 to 12 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 390±15 | Ω | ||
| Output resistance | 350±3.5 | Ω | ||
| Insulation resistance | ≥5000 | MΩ | ||
| Environmental protection | IP67 | |||
- FSO - Full Scale Output
- All specifications subjects to change whithout notice.
Applications
- Suspended hoppers
- Overhead track scales
- Force measurement
| Capacity This load may also be available in other capacities. If your required quantity isn’t listed, please request a custom quote |
100 kg ,1000 kg ,250 kg ,500 kg |
|---|---|
| Accuracy / Class Code |
NTEP 10000 Multiple Class IIIL NTEP certified; 10000 divisions, multiple range, Class IIIL (large capacity). ,NTEP 3000 Single Class III NTEP certified; 3000 divisions, single range, Class III (typical trade scales). ,NTEP 5000 Multiple NTEP certified; 5000 divisions, multiple range. ,OIML 3000 d OIML certified; 3000 divisions. |
| Approval & Safety Code |
FM Certified by Factory Mutual (FM Global, USA) for safe use in hazardous or explosive environments. ,Not ATEX/FM approved No certification for ATEX or FM; cannot be used in regulated hazardous zones. |
| Cable Length |
0.9 m ,6 m ,6.25 m |
| Environmental Code |
IP67 Dust-tight and protected against temporary immersion in water (up to 1 meter depth, 30 minutes). |
| Load Cell Types |
S-Type |
| Material |
Stainless Steel |
| Mounting |
Metric Refers to metric thread standard (e.g., M8, M12). Common in Europe and Asia. ,UN Unified National Thread (UNC/UNF) – U.S. inch-based threading system. ,Unified National Same as UN – explicitly refers to UNC (coarse) or UNF (fine) threads. |
| Output |
3.0 mV/V ,Standard Product |
