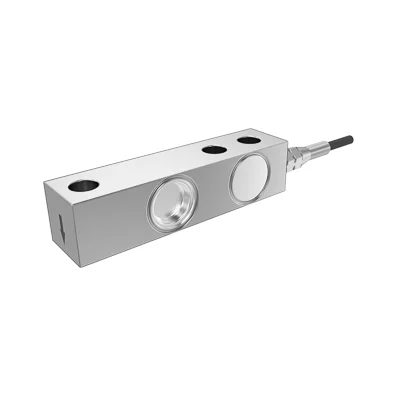

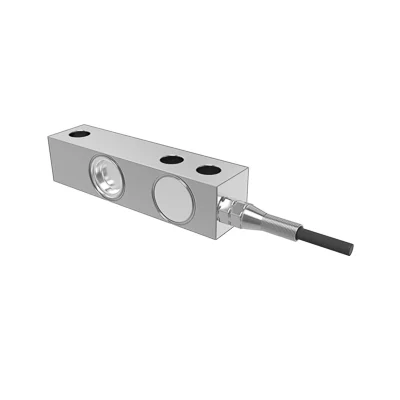

SQB- Single-Ended Beam

$798.60

Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low-profile platform or small tank scales, when used with proper mounting accessories.

Capacities: 500 to 20k lbs., 250 to 5000 kg
High side-load tolerance
Electroless nickel-plated-alloy tool steel

Download Data Sheet – SQB Single-Ended Load Beam

2 in stock (can be backordered)

Quantity	Price	Discount
1-4	$798.60	$0.00
5+	$718.74	10%

Add to wishlist

Guaranteed Safe Checkout

SKU: 00SQB-001T-F0-01F Category: Single-Ended

List of variants

Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories.

It is insensitive to side loading and capable of reversed loading. Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.

Features

Capacities: 500 to 20k lbs., 250 to 5000 kg
High side-load tolerance
Electroless nickel-plated-alloy tool steel
NTEP Class III 5000M for SQB, SQB-F and SQB-SS available from 1k to 10k lbs.
SQB-SS stainless-steel construction

Options

FM approval
EDOC product appearance will differ from the photograph due to coating

Certifications

Parameter	Value		Unit
Rated capacity (kg)	250, 500, 1000, 1500, 2000, 2500, 5000		kg
Rated capacity (lbs)	500, 1k, 2k, 2.5k, 3k, 4k, 5kSE, 5k, 10k, 15k, 20k		lbs
NTEP/oiml accuracy class	NTEP III	Non-Approved
Max. no. of intervals (n)	3000 single, 5000 multiple	1000
Rated output R.O	3		mV/V
Rated output tolerance	0.25		±%mV/V
Zero balance	1		±%FSO
Non-repeatability	0.020	0.020	±%FSO
Creep error	0.025	0.030	±%FSO
Ultimate over load	300		% of R.C
Excitation voltage	10		VDC or VAC RMS
Max. excitation voltage	15		VDC or VAC RMS
Input resistance	385±5		Ω
Output resistance	350±3		Ω
Insulation resistance	>5000		MΩ
Environmental protection	IP67

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Truck/rail scales
Silo/hopper/tank weighing
Platform scales (multiple load cells)
Pallet truck scales
Packaging machines

Capacity This load may also be available in other capacities. If your required quantity isn’t listed, please request a custom quote	1000 kg
Accuracy / Class Code	NTEP 5000 Multiple NTEP certified; 5000 divisions, multiple range.
Approval & Safety Code	FM Certified by Factory Mutual (FM Global, USA) for safe use in hazardous or explosive environments.
Cable Length	30 m
Environmental Code	IP67 Dust-tight and protected against temporary immersion in water (up to 1 meter depth, 30 minutes). , IP68 Dust-tight and protected against continuous immersion in water under conditions specified by the manufacturer.
Load Cell Types	Single-Ended Shear Beam
Material	Alloy Steel
Output	Standard Product

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Celtron is a globally recognized brand known for delivering high-precision load cells and weighing solutions. With a reputation for reliability and durability, Celtron products are widely used across industrial, commercial, and OEM applications. Engineered for accuracy and long-term performance, Celtron remains a trusted choice for businesses seeking consistent weighing technology.
